Terraform and Azure CosmosDB

Recently I was creating Terraform IaaC solution for Azure CosmosDB. First step was to find if there is en exising terraform module, which I could use for our needs. Unfortunately, there is no official module in Terraform Registry, like one for Azure PostgreSQL.

After some searching, I’ve found CosmosDB module from Microsoft Cobalt repository. While it’s better than nothing, still it don’t look like production ready - sparse documentation, weird tagging, low popularity and questionable support.

So I’ve created our own module, and I’d like to share some thoughts on current state of Azure CosmosDB Terraform support.

Capabilities

As it turned out, capabilities are very important for creation of CosmosDB. But documentation on capabilities is really confusing.

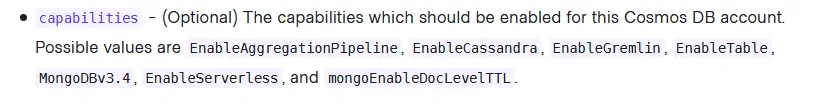

For example, capabilities on Argument Reference is listed twice:

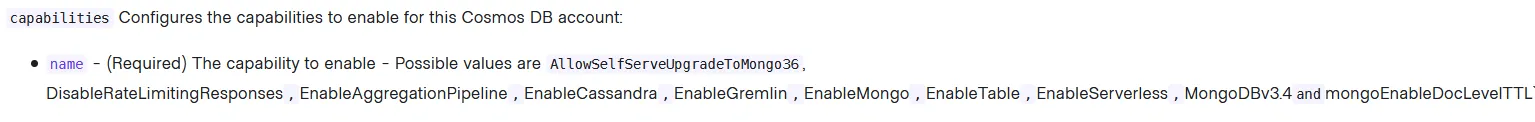

Second reference:

Why capabilities are mentioned twice on azurerm_cosmosdb_account? What’s the difference? Why lists of supported capabilities are different?

Furthermore, since supported capabilities are tightly coupled with provider version, it looks like that if even if provider already supports them, it may still not be in documentation.

CosmosDB API for Mongo

I’ve mentioned that capabilities are important. They allow you to pick the MongoDB API version to be used(which will reflect to server version in Azure Portal).

Here’s what I’ve find out after some experimentations:

• No capabilites - server version 3.2 will be created
• MongoDBv3.4 - server version 3.2 with 3.4 API support(determined in CLI as server version 3.4
• EnableMongo - server version 3.6 will be created.

List of supported capabilities depends on provider version and is a subject to change.

In our case, it was worth always use EnableMongo to receive 3.6 compatible API. Unsharded collection under database with throughput let’s us synchronize databases without pain amending sharded keys.

Throughput

Another topic which I was confused about. As I understand it, you can assign throughput on following levels:

• Database
  • dedicated throughput - RU/s are set per collection in DB
  • shared throughput - RU/s are shared among collections in DB
• Collection

You can also set following types of throughput:

• Manual - exact value, with minimum of 400 RU/s
• Autoscale - throughput will be provisioned on demand, with minumum 4000 RU/s

In Terraform, despite the fact that according to documentation throughput must be set upon database creation otherwise it cannot be updated without a manual Terraform destroy-apply, I was able to:

• Successfully increase and decrease database throughput

Backups

Initially, CosmosDB’s built-in solution for backups supported only following:

• Backups are performed every 4 hours
• 2 copies of data are retained

Recently, Microsoft added support for backup interval and retention period.

At the time of writing, Terraform don’t support setting backup interval or retention period. To implement backups you have following optinos:

• Use CosmosDB’s built-in solution with default options.
• Manually tweak interval or retention period
• Build your own backup solution

Syncronizing data

While using of CosmosDB API for MongoDB v3.6 solved sharded key issue for us, it bring it’s own issues. For example, we couldn’t restore backup using mongorestore, with following error message:

Exception: This MongoDB deployment does not support retryable writes. Please
add retryWrites=false to your connection string.

Adding this option to connection URI didn’t help. Maybe it will work on older versions of mongorestore but we find another way.

Azure Database Migration Services worked like a charm, transferring all data from On-Prem to Azure CosmosDB v3.6. While it’s a bit pricy, all data were synched successfully. Azure DMS supports both offline and online sync, which you can pick depending on your needs.

Summary

Even with all mentioned issues, ability to have databases as IaaC and scale them on demand, outweighs the cons. While we’ve not reached prod with CosmosDB yet, first dozen of databases are handed to developers for testing.

Worth mentioning the Microsoft released to preview Azure Cosmos DB serverless which looks very promising and suits our need even better.(Though there are no support for MongoDB yet).
