Running testcontainers in Kubernetes with KubeDock

Testcontainers is great framework for replacing complicated mocks in tests with the real dependencies like databases, message queues, etc.. in containers.

Developers love this framework, and it’s really easy to get it running on the local machine.

However, running testcontainers in Kubernetes, as part of your CI pipeline is not that obvious.

In this blog post, I will show you how you can achieve this by using Kubedock and what you should configure Gitlab CI pipeline in order for it to be able to connect to Kubedock and run containers.

Problem with running Testcontainers in Kubernetes.

By default, Testcontainers will will attempt to detect the Docker environment and configure everything to work automatically. It checks for Docker socket in unix:///var/run/docker.sock and uses it to spin up new containers.

If you’re running a modern version of Kubernetes, most likely your runtime is not Docker and you don’t have Docker socket available.

Kubedock

One possible solution to run Testcontainers in Kubernetes s to use Kubedock. It is a project that implements docker api that will orchestrate containers on a Kubernetes cluster, rather than running containers locally. The main driver for this project is to run tests that require docker-containers inside a container, without the requirement of running docker-in-docker within resource heavy containers.

There are two ways to run Kubedock:

• As a sidecar, sharing Docker socket as Volume
• As a standalone service, orchestrating test containers.

Kubedock’s documentation doesn’t have good examples(or any examples) of how you can run Kubedock as a standalone service, however in my opinion this is the most comfortable way to integrate Testcontainers in your CI. Also I couldn’t find any article describing this setup, so I decided to describe my way of doing it in this blog post.

Let’s dive in and see how you can implement this.

Installing Kubedock in Kubernetes

I’ll use namespace gitlab-runner as I want Gitlab CI to communicate with Kubedock.

First we need to create serviceaccount which Kubedock will use to create containers:

apiVersion: v1
kind: ServiceAccount
metadata:
  name: kubedock
  namespace: gitlab-runner

Then we need to create role:

apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: kubedock-role
  namespace: gitlab-runner
rules:
  - apiGroups: [""]
    resources: ["pods"]
    verbs: ["create", "get", "list", "delete", "watch"]
  - apiGroups: [""]
    resources: ["pods/log"]
    verbs: ["list", "get"]
  - apiGroups: [""]
    resources: ["pods/exec"]
    verbs: ["create"]
  - apiGroups: [""]
    resources: ["services"]
    verbs: ["create", "get", "list", "delete"]
  - apiGroups: [""]
    resources: ["configmaps"]
    verbs: ["create", "get", "list", "delete"]

And rolebinding:

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: kubedock-rolebinding
  namespace: gitlab-runner
subjects:
  - kind: User
    name: system:serviceaccount:gitlab-runner:kubedock
    apiGroup: rbac.authorization.k8s.io
roleRef:
  kind: Role
  name: kubedock-role
  apiGroup: rbac.authorization.k8s.io

Next step is to create deployment:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: kubedock-server
  namespace: gitlab-runner
spec:
  replicas: 1
  selector:
    matchLabels:
      app: kubedock-server
  template:
    metadata:
      labels:
        app: kubedock-server
    spec:
      serviceAccountName: kubedock
      containers:
        - name: kubedock-server
          image: joyrex2001/kubedock:0.17.0
          resources:
            limits:
              memory: "4Gi"
              cpu: "1000m"
            requests:
              memory: "2Gi"
              cpu: "200m"
          ports:
            - containerPort: 2475
          args: [
              # Configuration options described here:
              # https://github.com/joyrex2001/kubedock/blob/master/config.md
              "server",
              "--namespace=gitlab-runner",
              "--service-account=kubedock",
              "--timeout=20m0s",
              "--request-cpu=1",
              "--request-memory=2Gi",
              "--disable-dind",
              "--reverse-proxy",
              "--reapmax=60m",
              # "-v=3", # Uncomment for debugging
            ]

In this Deployment, I am configuring Kubedock to listen for incoming connections on port 2475. I also disable dind(docker in docker) and expose ports of created test containers via the built-in reverse-proxy.

Spinning new container time is limited with 20 minutes, and after 60 minutes completed or failed test containers will be removed.

Final missing piece is headless Kubernetes service:

apiVersion: v1
kind: Service
metadata:
  name: kubedock-service
  namespace: gitlab-runner
spec:
  selector:
    app: kubedock-server
  type: ClusterIP
  clusterIP: None

I am using headless service(ClusterIP: None) as Kubedock use dynamic port for each created test containers.

After applying all those manifests, you should see following Logs from the Kubedock:

I0820 07:41:20.981507       1 main.go:29] kubedock 0.17.0 (20240802-193331) / kubedock.id=7e1bb6b9fa3d
I0820 07:41:20.982310       1 main.go:109] kubernetes config: namespace=gitlab-runner, ready timeout=20m0s
I0820 07:41:20.982339       1 main.go:111] docker-in-docker support disabled
I0820 07:41:20.983065       1 main.go:165] reaper started with max container age 1h0m0s
I0820 07:41:20.983187       1 main.go:101] enabled reverse-proxy services via 0.0.0.0 on the kubedock host
I0820 07:41:20.983207       1 main.go:115] default cpu request: 1
I0820 07:41:20.983219       1 main.go:119] default memory request: 2Gi
I0820 07:41:20.983251       1 main.go:128] default image pull policy: ifnotpresent
I0820 07:41:20.983265       1 main.go:131] service account used in deployments: kubedock
I0820 07:41:20.983285       1 main.go:134] pod name prefix: kubedock
I0820 07:41:20.983313       1 main.go:138] using namespace: gitlab-runner

Now, let’s set up connection from the Gitlab runner to our Kubedock service.

Configuring Gitlab CI pipeline

I will use a simple pipeline, which will run Maven test

kubedock_test_job:
  stage: test
  tags:
    - self-hosted-no-dnd
  image: registry.example.com/openjdk17-building:latest
  script:
    - export DOCKER_HOST=tcp://kubedock-service:2475
    - export TESTCONTAINERS_HUB_IMAGE_NAME_PREFIX=registry.example.com/java/
    - export TESTCONTAINERS_RYUK_DISABLED=true
    - export TESTCONTAINERS_CHECKS_DISABLE=true
    - mvn-hh clean test

stages:
  - test

In this pipeline I am using a custom pre-build openjdk17-building image from my private registry.

To do this, I’m configuring testcontainers with following environment variables:

• DOCKER_HOST - we emulate remote Docker socket by forwarding requests to headless kubedock-service.
• TESTCONTAINERS_HUB_IMAGE_NAME_PREFIX - all container images should be taken from our private registry
• TESTCONTAINERS_RYUK_DISABLED - ryuk is a cleanup container and we don’t need to spin it in Kubernetes - Kubedock will do the cleanup.
• TESTCONTAINERS_CHECKS_DISABLE - testcontainers will check if local Docker socket is available, so this check has to be disabled.

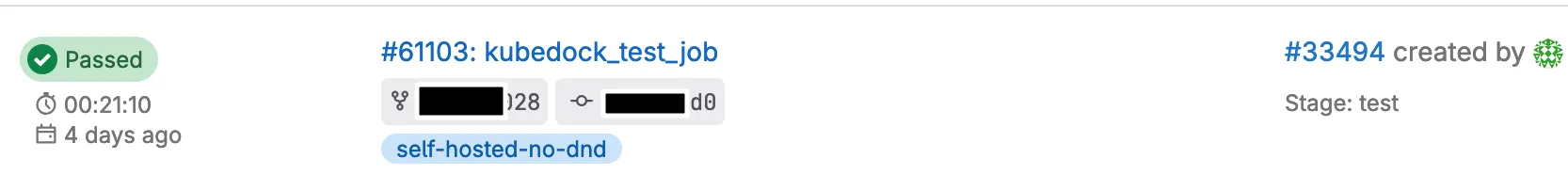

Hopefully, if everything is configured correctly, your Gitlab runner will:

• run tests which will contact Kubedock service
• Kubedock will spin up new kubedock containers, for example database
• Kubedock will proxy requests from tests into the database
• After successful tests, test containers(database) will be removed.
