Calico Network Policy Visualiser

At work, we use Calico network policies extensively. Between NetworkPolicy and GlobalNetworkPolicy resources across multiple clusters, keeping track of what’s allowed and what’s blocked gets complicated fast. Reading raw YAML works when you have one simple policy, but once you’re dealing with dozens of rules across ingress and egress, with selectors, CIDR blocks, and port ranges mixed together, it’s easy to miss something.

Cilium folks have a free Network Policy Editor that lets you create, visualize, and share Kubernetes network policies right in the browser. It’s a well-made tool, and I’ve seen it recommended many times in the community. But it only works with standard Kubernetes NetworkPolicy and Cilium-specific policies. If you’re on Calico, you’re out of luck.

Calico does have visualization features, but they’re locked behind Calico Cloud and Calico Enterprise. There’s nothing free and open for the community. So I built my own.

Calico Policy Visualiser

The idea is simple: paste or import your Calico YAML, get an interactive graph and a plain-English explanation of what the policy does. Everything runs client-side, no data leaves your browser. You can try it out at sbulav.github.io/calico-visualiser.

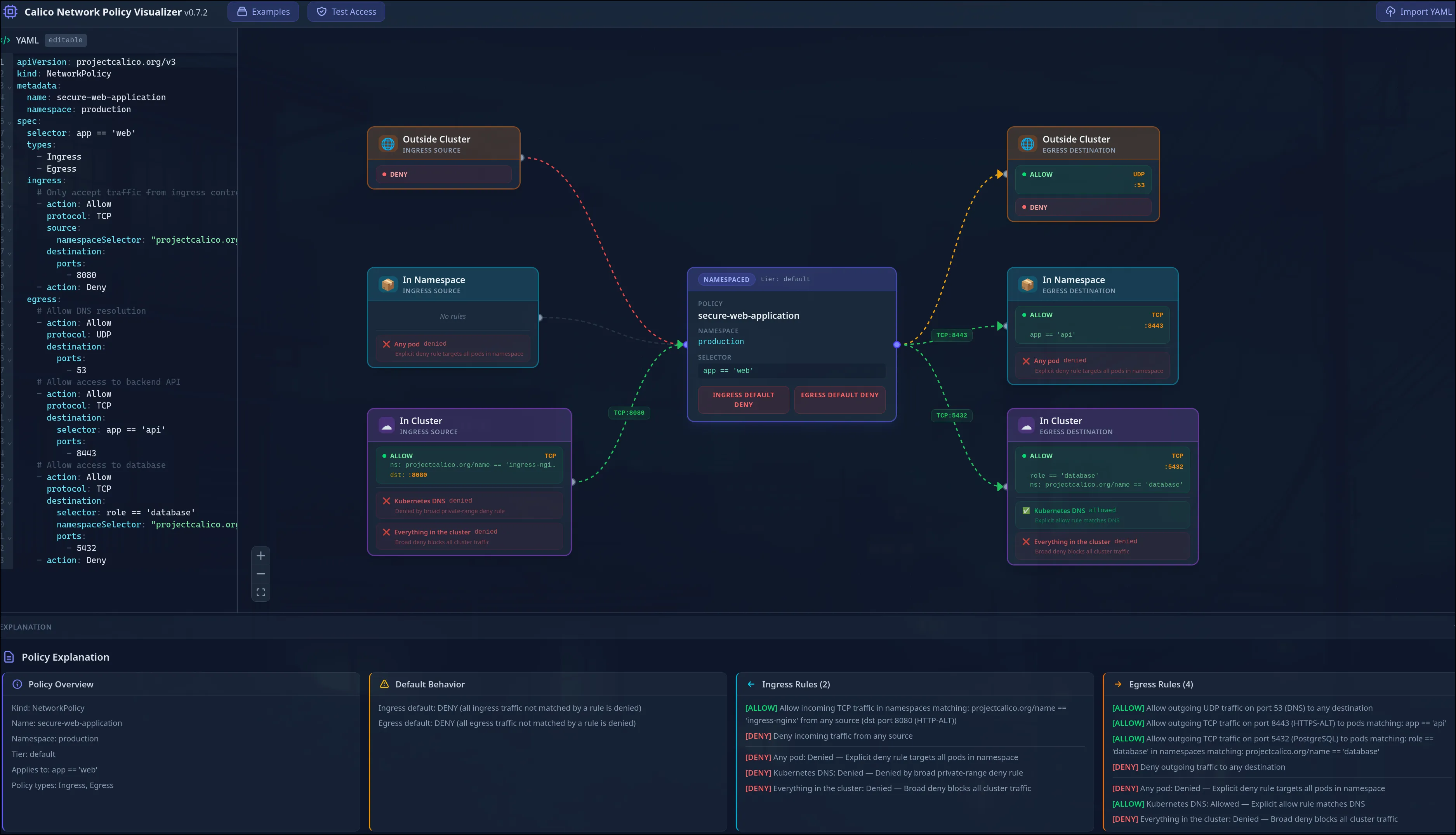

The interface has three synchronized panels:

• YAML editor on the left. It’s a full CodeMirror editor with syntax highlighting. You can edit the YAML directly and the graph updates live. If you break the YAML mid-edit, the last valid visualization stays on screen and an error banner shows the parse issue.
• Graph in the center. A React Flow canvas with the policy node in the middle, connected to rule categories: Outside Cluster (CIDRs), In Namespace (pod selectors), In Cluster (cross-namespace). Edges are color-coded: green for Allow, red for Deny, amber for Log or mixed actions. Hover a rule card to highlight the matching YAML lines in the editor.
• Explanation at the bottom. A text breakdown of the policy: effective defaults, per-rule descriptions, flag details (doNotTrack, preDNAT, applyOnForward). It recognizes 20 well-known ports, so you see “Redis (6379)” or “PostgreSQL (5432)” instead of bare numbers.

Features

• Full Calico v3 spec support: selectors, namespaceSelector, serviceAccountSelector, tier, order, types (inferred if missing), rules with all actions (Allow/Deny/Log/Pass), protocol, ICMP, source/destination with nets, ports, services, serviceAccounts, negation fields (notNets, notPorts, notSelector), HTTP match, ipVersion, and policy flags.
• Inferred access indicators: the graph shows whether Kubernetes DNS, any pod in the namespace, or everything in the cluster is allowed, denied, or uncertain based on the current rules.
• Built-in sample policies to get started quickly.
• Supports both NetworkPolicy and GlobalNetworkPolicy.
• No backend. No accounts. No data sent anywhere.

Built with Claude

Yes, the code was written by Claude Opus 4.6. The project has 252 tests across seven test files, and I’m reasonably happy with the result.

What’s next

I plan to open-source the code under MIT license soon. The repository isn’t public yet, but it will be.

I hope someone will find this project as useful as I do.
